open and closed pillow blocks

Linear Ball Bearing
Industry Interchange

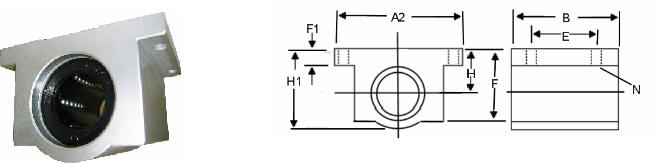

Sealed & Self Aligning CLOSED Pillow Block Bearings

High Volume
call for quotation
1-800-513-3163
Mike Quinn

Distributors call for
distributor pricing

PDF CATALOG

Part Number

d
Nominal
Shaft Diameter

H
+/-
.003

Hole

Bolt

Mass
(Lbs.)

Load Rating

SPB8B

.500

.687

1.250

2.00

1.38

1.69

1.000

.8750/.8755

1.13

.250

.160

.20

255

SPB10B

.625

.875

1.630

2.50

1.75

1.94

1.125

1.1250/1.1255

1.44

.280

.190

.50

450

SPB12B

.750

.937

1.75

2.75

1.88

2.06

1.250

1.2500/1.2505

1.56

.310

.190

.60

600

SPB16B

1.00

1.187

2.19

3.25

2.38

2.81

1.750

1.5624/1.5630

1.94

.381

.220

#10

1.2

1050

SPB20B

1.25

1.500

2.81

4.00

3.00

3.63

2.000

2.0000/2.0010

2.50

.440

.220

#10

2.5

1500

SPB24B

1.50

1.750

3.25

4.75

3.50

4.00

2.500

2.3740/2.3760

2.88

.500

.280

1/4

3.8

2000

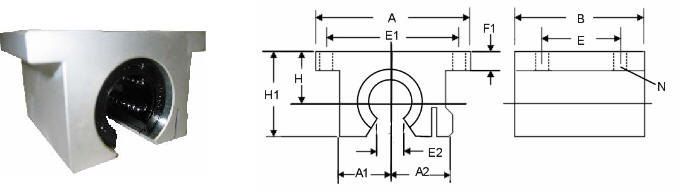

Sealed & Self Aligning OPEN Pillow Block Bearings

High Volume
call for quotation
1-800-513-3163
Mike Quinn

Distributors call for
distributor pricing

PDF CATALOG

Part Number

d
Nominal
Shaft Diameter

H
+/-
.003

Hole

Bolt

Mass
(Lbs.)

Load Rating

SPB8OPB

.500

.687

1.13

2.00

.750

.69

1.50

1.000

1.688

.31

.250

.160

.20

230

SPB10OPB

.625

.875

1.44

2.50

.940

.88

1.75

1.125

2.125

.37

.280

.190

.40

320

SPB12OPB

.750

.937

1.56

2.75

1.00

.94

1.88

1.250

2.375

.43

.310

.190

.50

470

SPB16OPB

1.00

1.187

2.00

3.25

1.250

1.19

2.63

1.750

2.875

.56

.381

.220

#10

1.0

780

SPB20OPB

1.25

1.500

2.56

4.00

1.63

1.50

3.38

2.000

3.500

.62

.440

.220

#10

2.1

1170

SPB24OPB

1.50

1.750

3.94

4.75

1.88

1.75

3.75

2.500

4.125

.75

.500

.280

1/4

3.2

1560
